Milling machine series

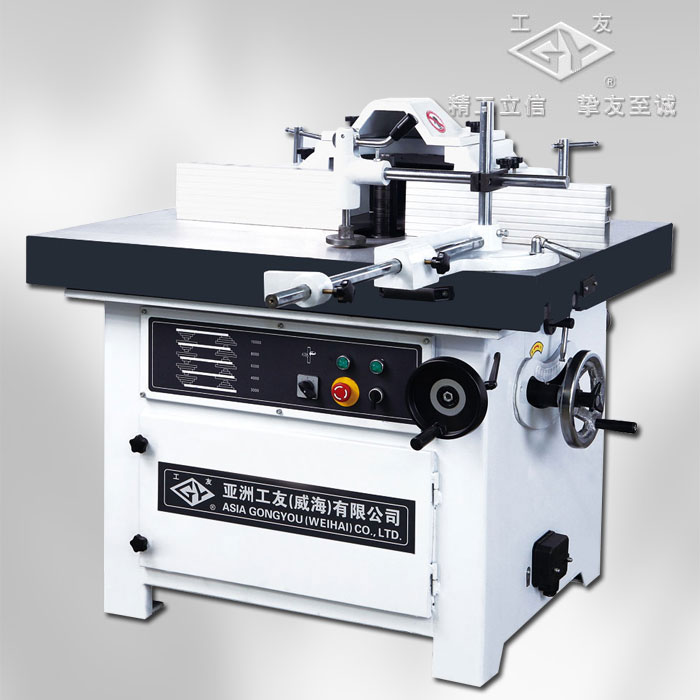

MX5615A Woodworking Milling Machine with Tiltable Spindle

Technical Specification	Unit	MX5615A
Main spindle speed	r/min	10000/8000/6000/4000/3000
Cutting circle diameter	mm	?35（?40 optional）
Max. milling height	mm	150
Tiltable angle of cutter arbor		0~45°
Table size	mm	1100×550
Max. hole size	mm	?200×80
Travelling table size	mm	1110×260
Max. stroke of travelling table	mm	800
Working table hight	mm	810
Motor power	kW	4
Overall dimensions	mm	1135×1525×1140
Net.weight	kg	480
