Finger Joint Shaper series

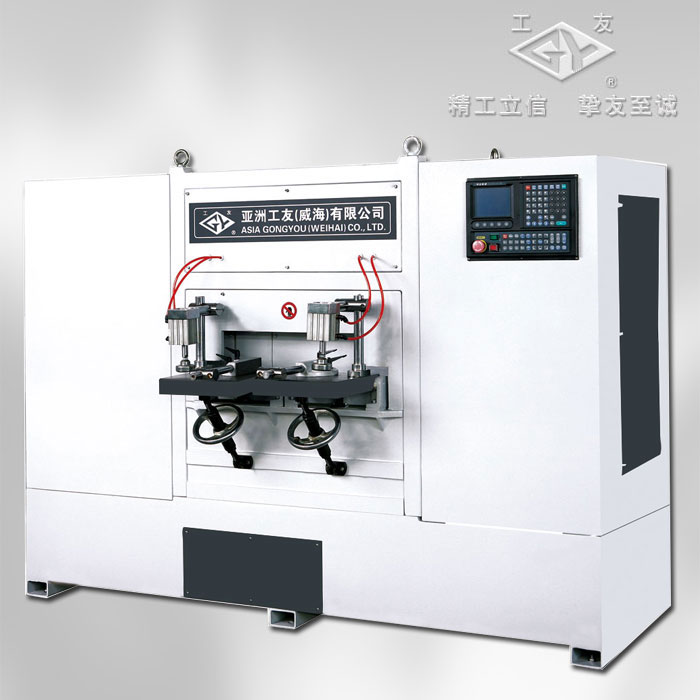

MXK3810 CNC Tenon Milling Machine
MXK3810 CNC Tenon Milling Machine
Technical Specification Unit MXK3810
Max. tenon width mm 100
Max. tenon thickness mm 25
Max. tenon depth mm 40
Cutter internal diameter mm ?30
Cutter diameter mm ?86(?114)
Main spindle speed r/min 7000
Main motor power kW 3
Table forward tilt angle   0-30°(30°45°)
Max.workpiece size mm 100×100(W×H)
Horizontal motor kW 1
Vertical motor W 750
Max.X working speed m/min 5
Max.X moving speed m/min 10
Max.Y working speed m/min 5
Max.Y moving speed m/min 10
Air source pressure MPa 0.4-0.6
Overall dimensions mm 2250×1150×682
Net.weight kg 1180
